This is a crazy project I started a while ago, I never actually thought this thing would work, but somehow it does!

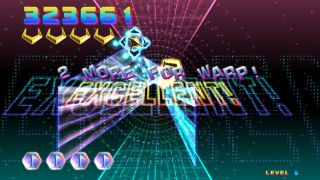

After successfully making a rotary controller for Tempest 2000 my Jaguar I thought it would be good to have one for the more excessive PC remake "Typhoon 2001" (free game - get it here
Typhoon can support Mouse based Analog input, and after toying with all kinds of Mouse mods to make one, I found online that the Arduino Leonardo can emulate a mouse! And so it begins!
The game needs a dial which will operate the mouse Left-Right, and 3 fire buttons which will emulate the mouse buttons
I wanted something as excessive as possible to match the gameplay, So I decided to add 4 superbright LEDs, and a PS2 force-feedback motor
well, after staring at online tutorials and some burnt fingers, and here it is...

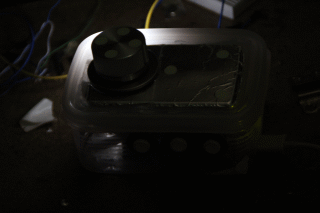

The Typhoon2001 controller... It plays Typhoon2001!
4 corner LEDs animate in order matching dial rotation
Jump button, with short LED flash and vibrate
SuperZapper (Smart bomb) button, with Long LED flash and vibrate
I am really amazed by how well it works, Its at least as good as the Jaguar one, and a lot of fun to play with! - Check it out on Youtube
If you want to have a go making it, you can download the Arduino Source here
is a guide to wiring the LEDS, Here
is a guide to the buttons, and Here
is a guide to the motor
(The rotary controller acts as two buttons)
please note, the way your rotary controller works may differ, some work in a sequence of 3 [01 11 10] others have 4 [01 11 10 00]... I'm sure there are others too!
